LASER CUTTING AND ENGRAVING PHOTO GALLERY

Updated: 18 January 2015

All images are the property of Tamar Laser Craft and should not be used without the written permission of the owner.

Lastest Additions

Click any of the images below to view a larger version which can then be dragged to any position on the page

Jump To Laser Engraving

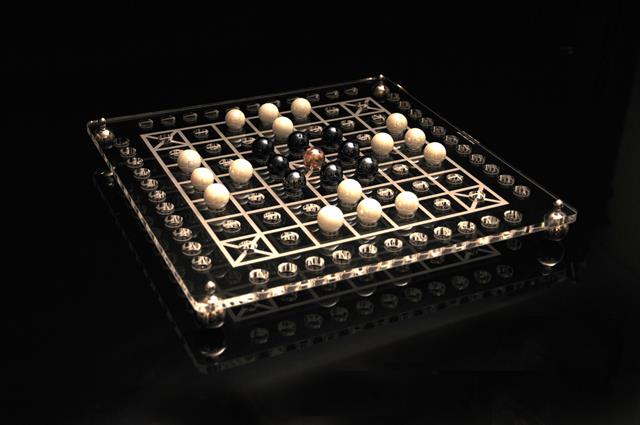

	As a tactile antidote to virtual computer games, we have recreated a series of ancient board games, of Norse, Middle Eastern and Germanic origin. Re-styled for a modern setting they will grace any living room, providing a fascinating conversation piece and offer challenging games for all the family.

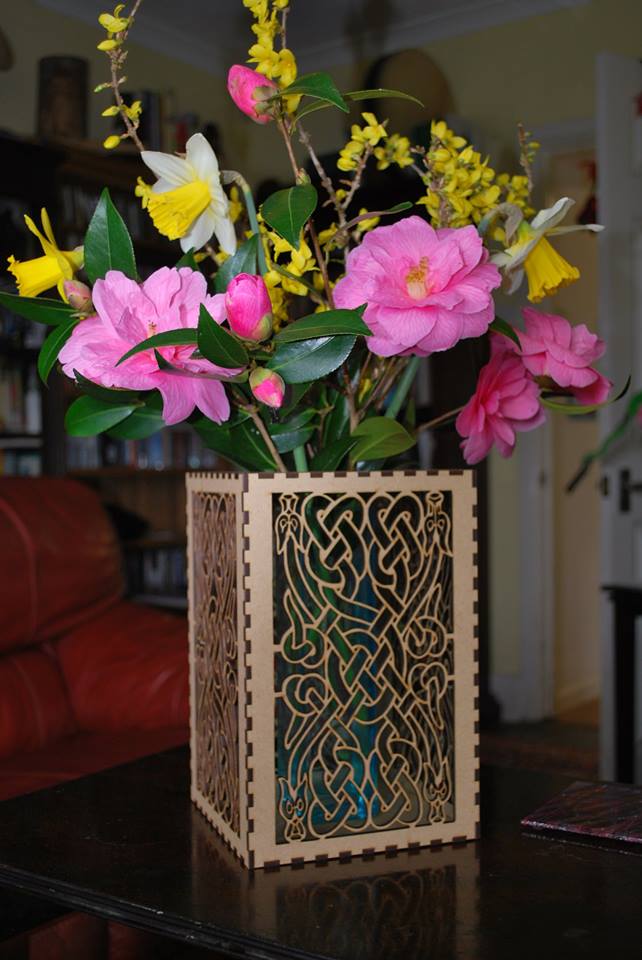

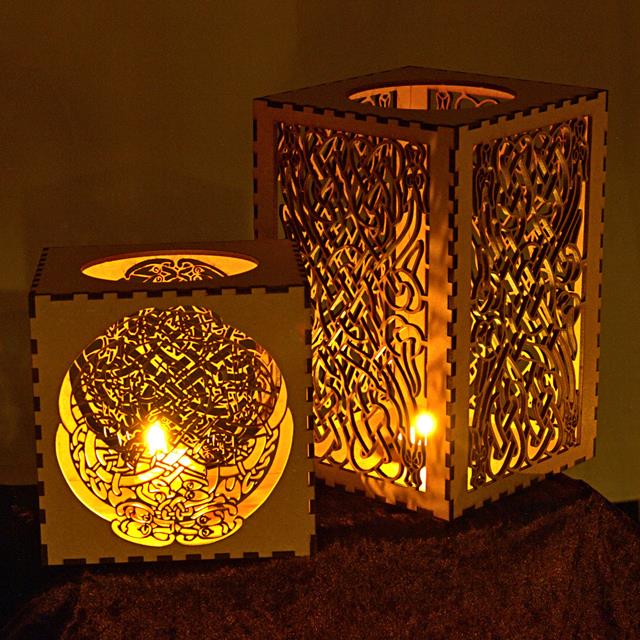

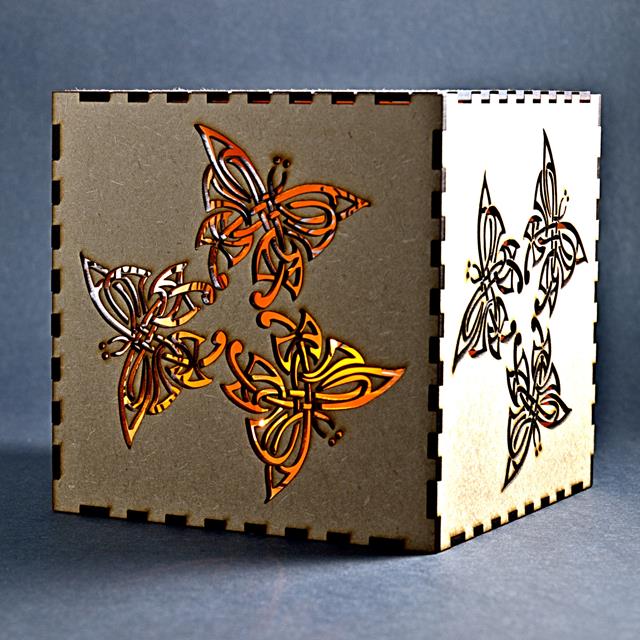

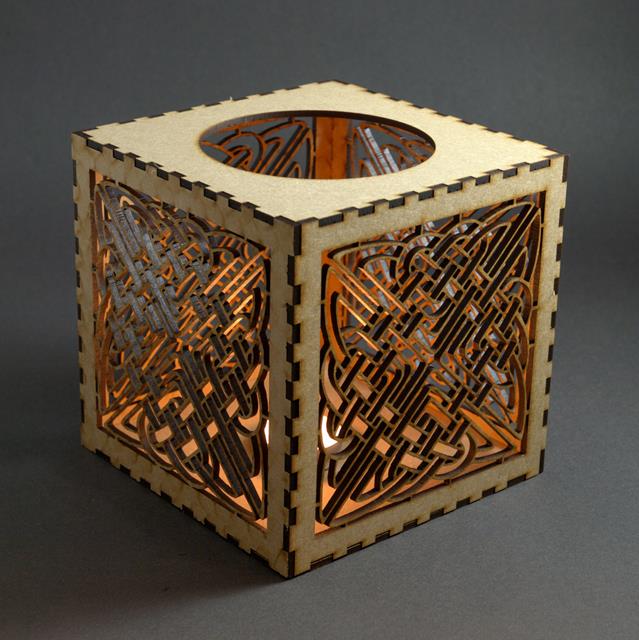

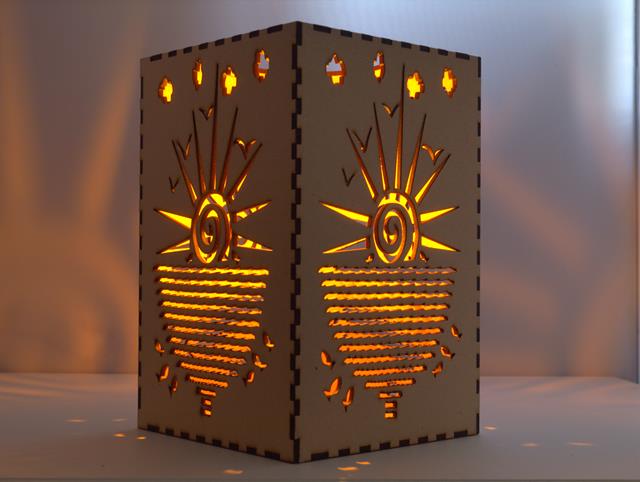

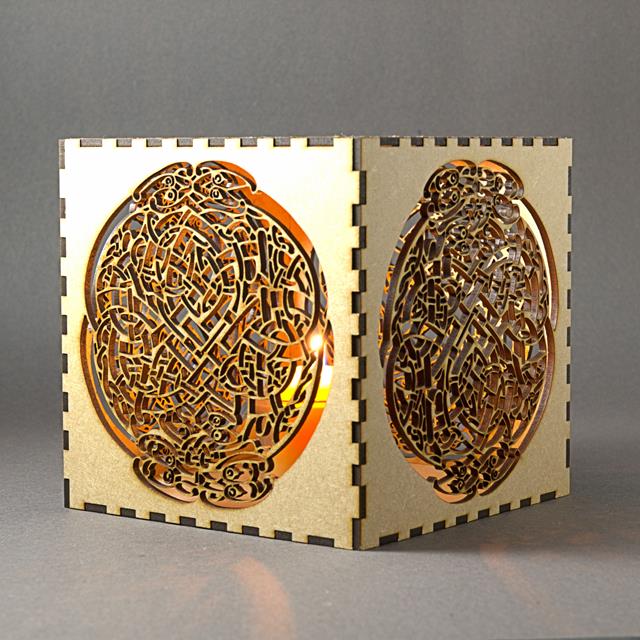

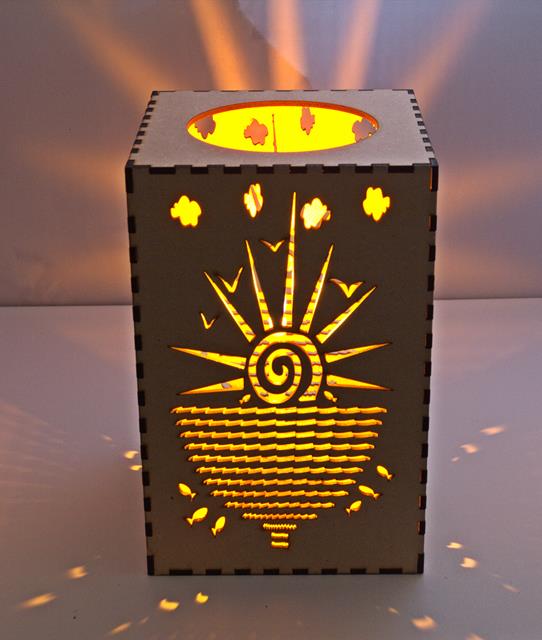

			A series of Candle Lanterns with Celtic Knot patterns, these Light Boxes are laser cut from 3.2mm MDF.

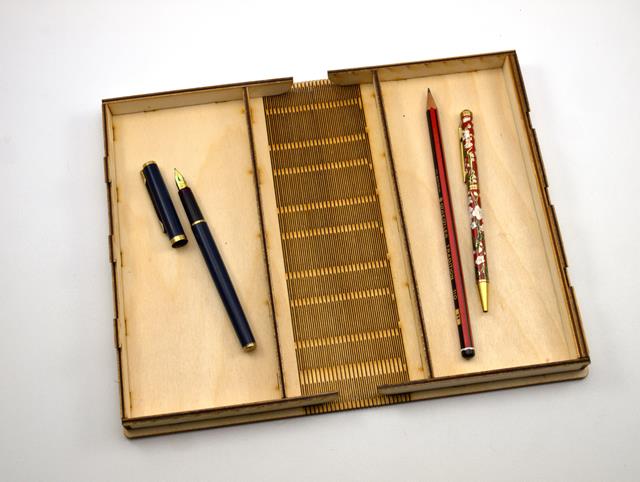

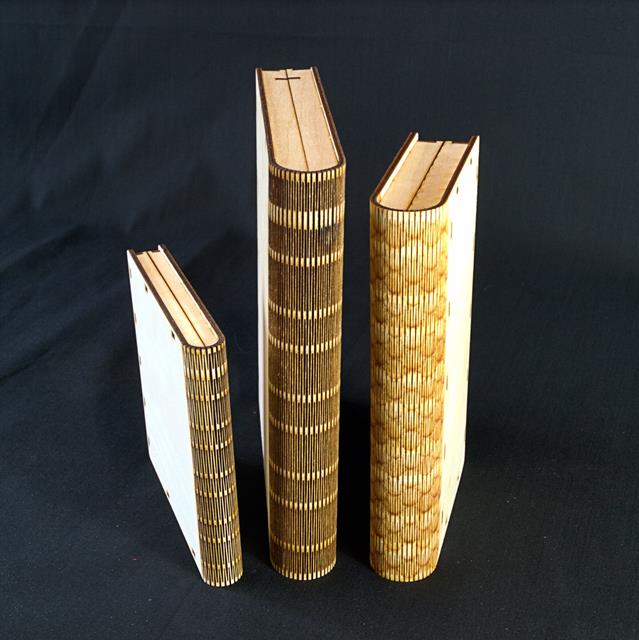

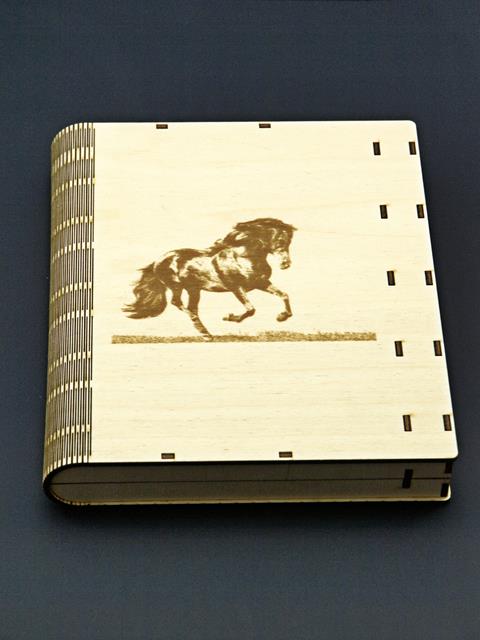

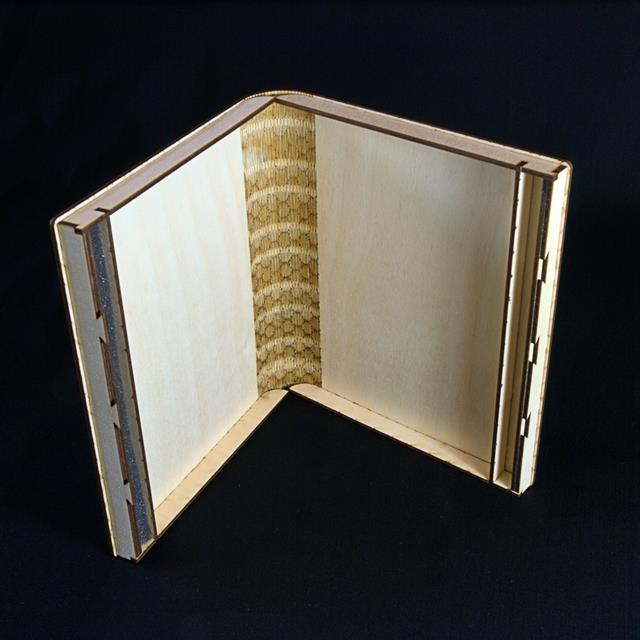

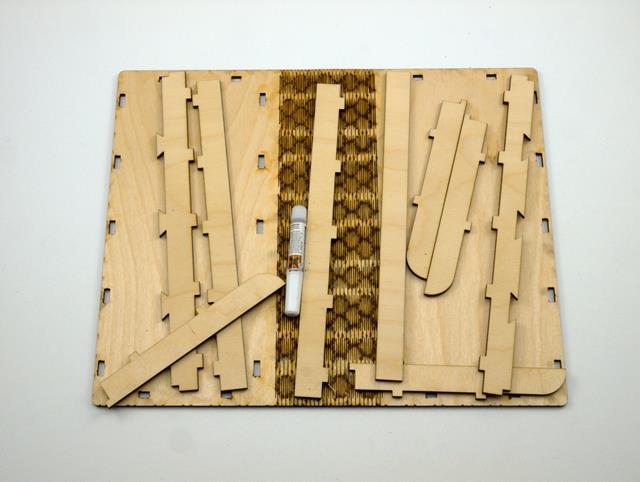

			Diary Cases, made in the style of a book, will grace any bookshelf and be a talking point for your friends and visitors. They are made from 3mm birch plywood, with the spine having many longitudinal offset slots cut to form a decorative hinge. The closure is fastened with sliding dovetail joints and inside there is a compartment for a pen. The cover can be engraved with your own design or a graphic of your choosing. These book style cases, as well as being used to keep a journal, have been used for wedding books, guest books and a memorial book

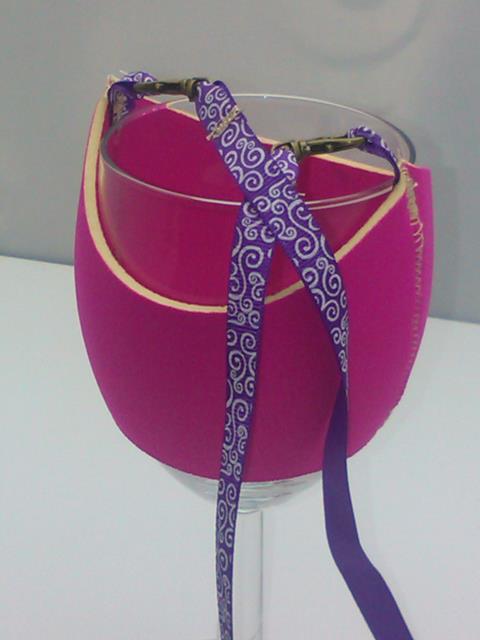

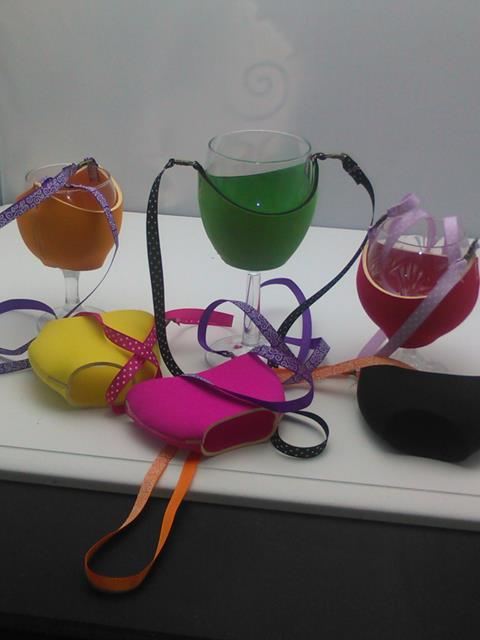

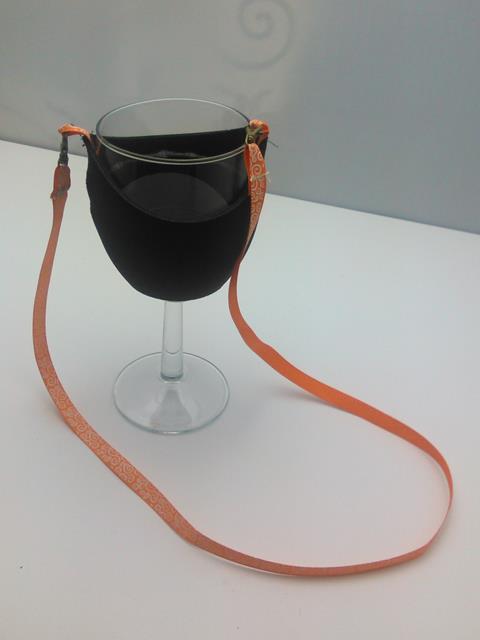

			Party Essentials ~ Hands-Free Wine Sling

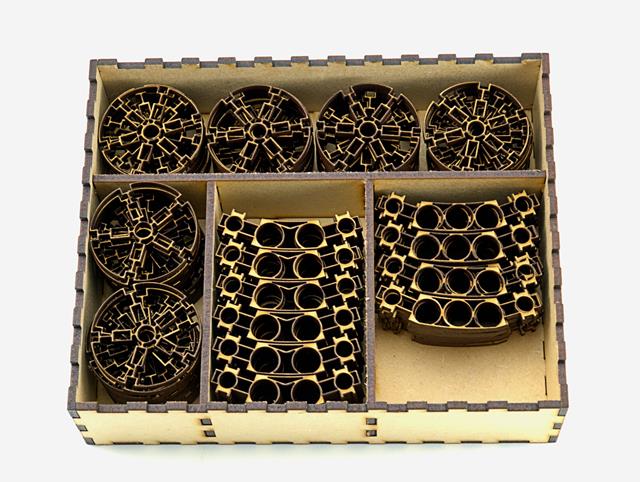

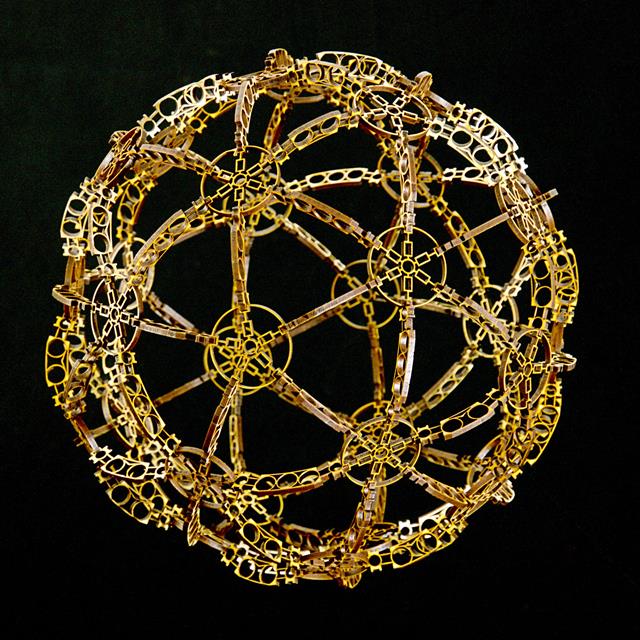

		This steampunk style 3d puzzle, commissioned for Christmas presents, was cut from 3.2mm mdf. The finished item forms a 300mm sphere.

h

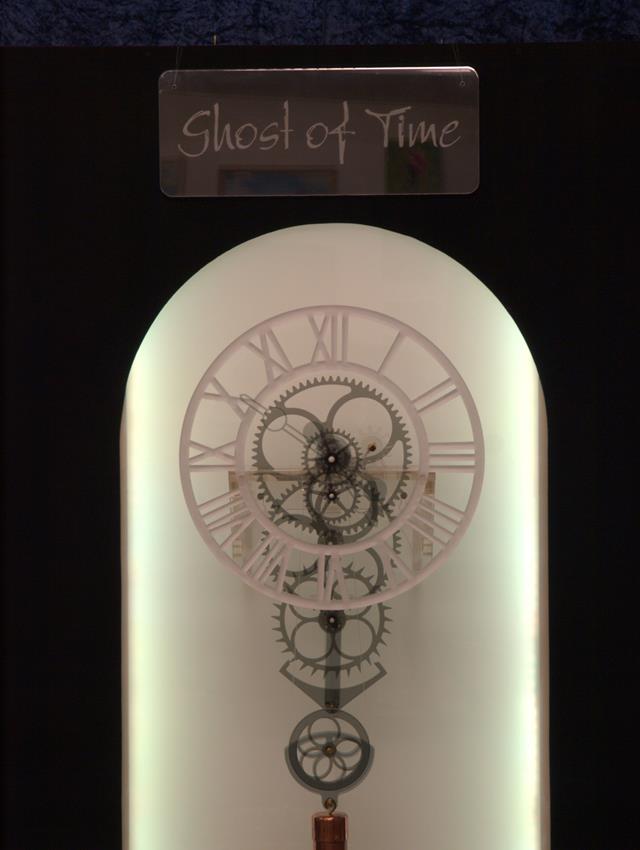

	Ghost of Time, an all acrylic pendulum clock from the wooden clock, Simplicity design by Clayton Boyer. Re-drafted for acrylic, laser cut and built by John Owles. The clock is constructed from 12mm, 8mm, 5mm and 3mm clear and smoked cast acrylic with the reverse side of the face being engraved. You can see a video of the pendulum clock "Ghost" here

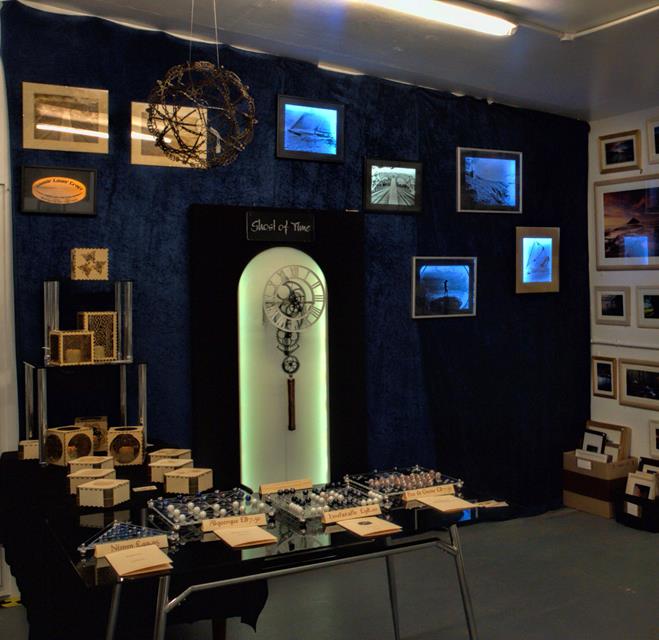

	Gorfenna Gallery Exhibition of laser cutting and engraving work

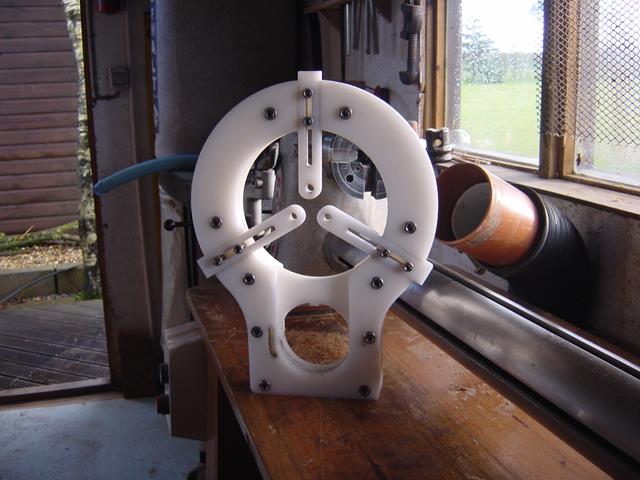

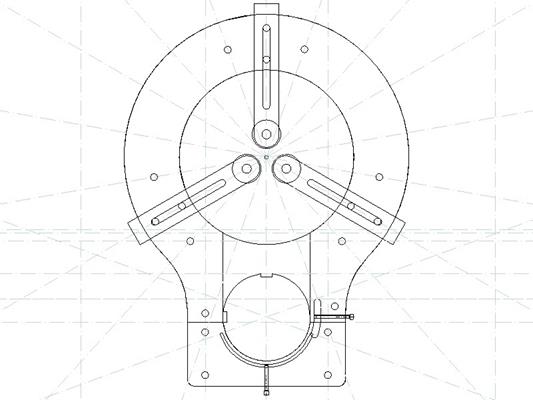

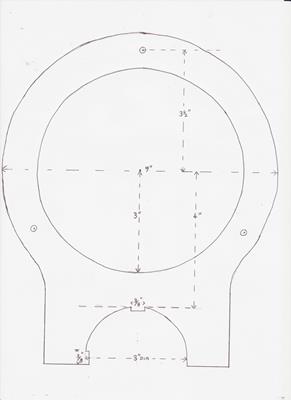

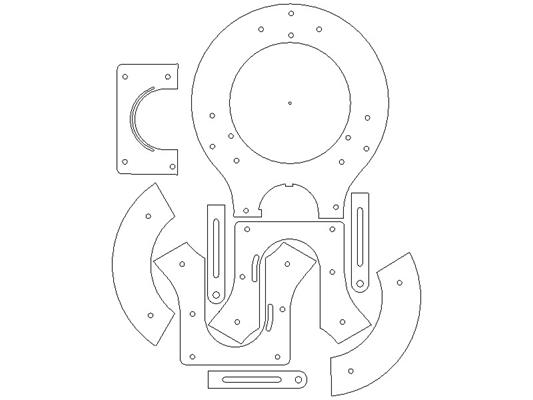

					This fixed steady for a Myford ML8 woodturning lathe demonstrates our ability to produce items of tooling. The initial sketch was sent in by the customer, from which a design was produced and a prototype cut from 9mm plywood and assembled. Following tests conducted by the customer, the steady was cut from 12mm acetal engineering plastic.

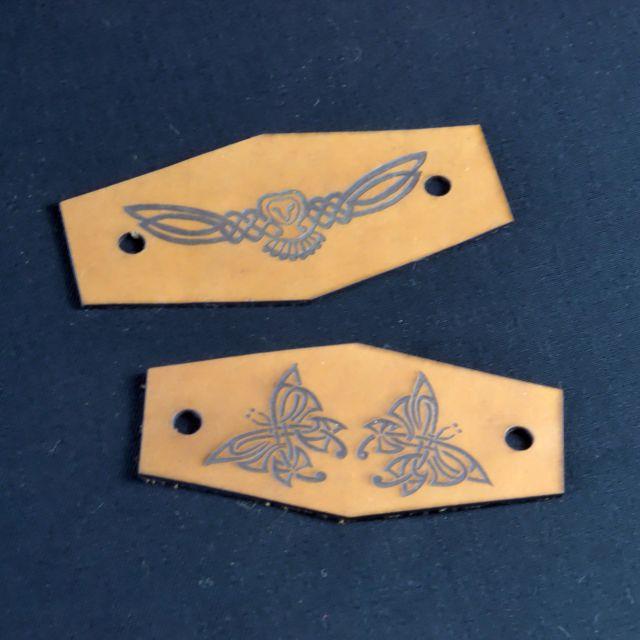

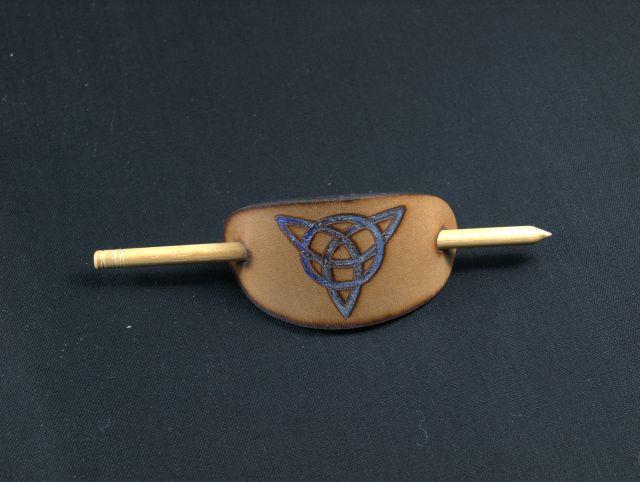

					A series of laser cut and engraved hair bars were produced from 2mm leather, some of which were picked out with coloured ink.

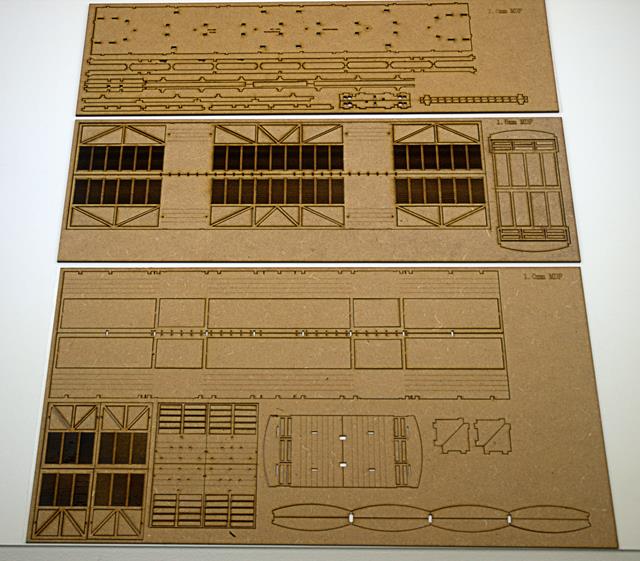

	Laser cut parts for highly detailed scale model railway kit, of a 15ton Fish Wagon in 1mm, 1.5mm and 2mm mdf, for Quainton Road Models

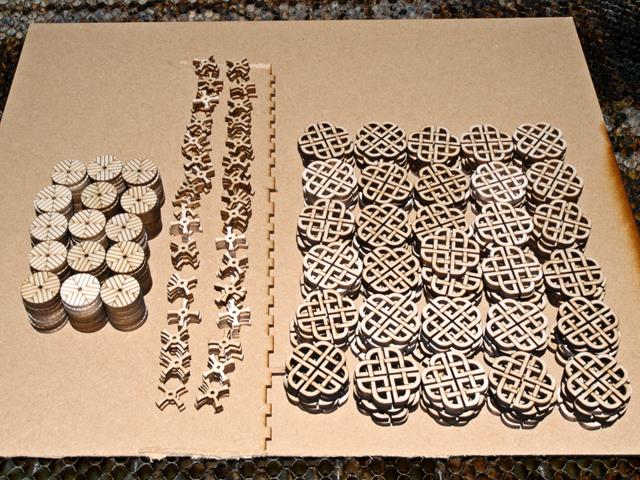

	This was a small production run of some Norse Motifs, consisting of 150 each of a Celtic Norse knot design, a Viking shield and a Celtic cross. The size of the designs ranged from 20mm to 25mm in diameter. The Celtic knot is to be carved into relief so we produced half depth score lines as carving guides.

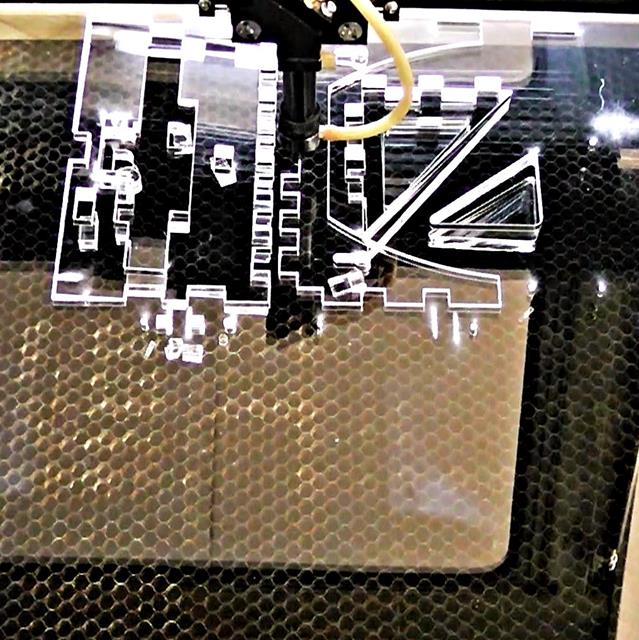

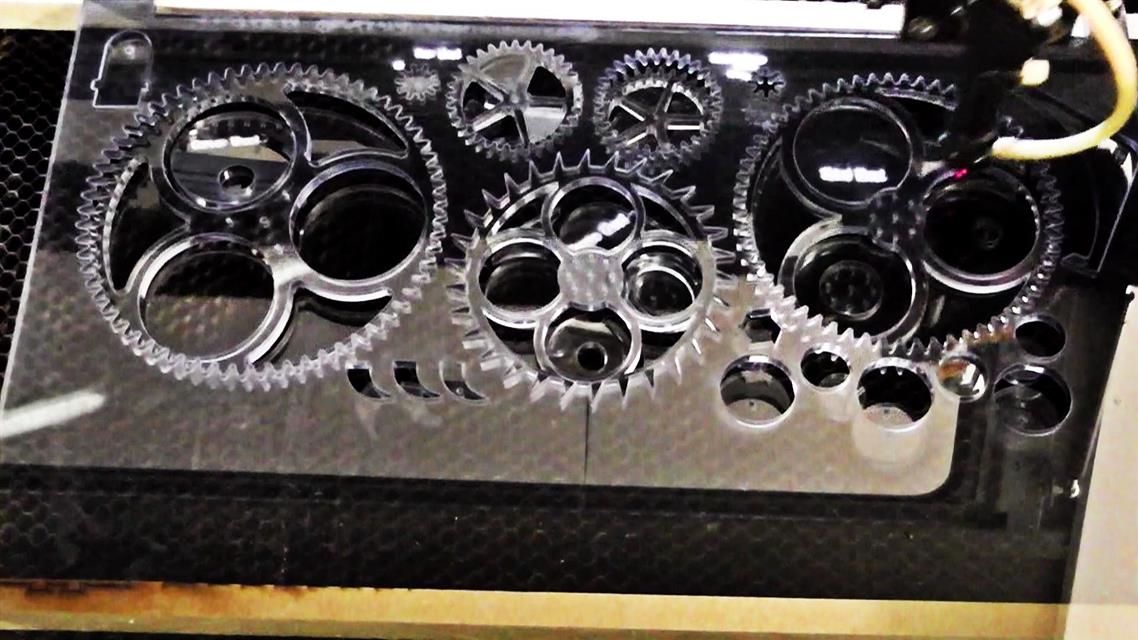

					Parts for a pendulum clock being cut from 12mm and 8mm acrylic sheet

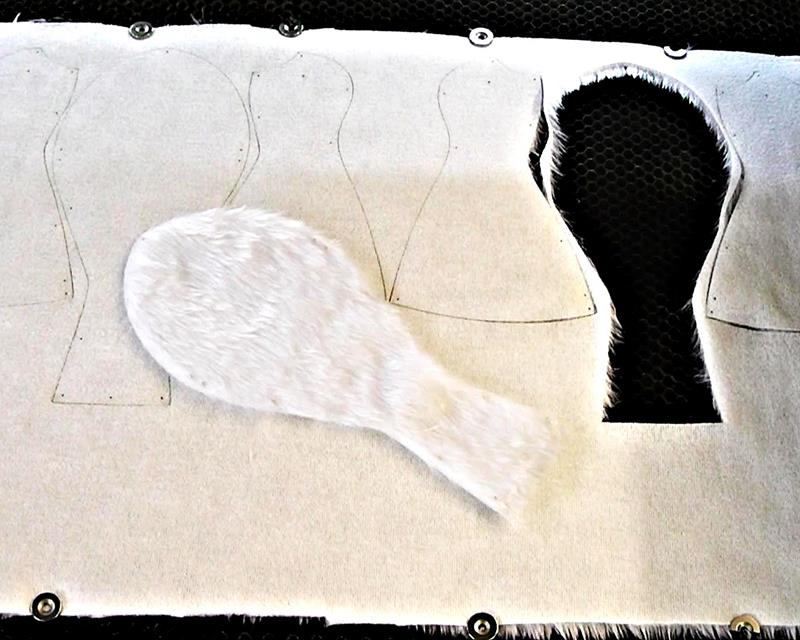

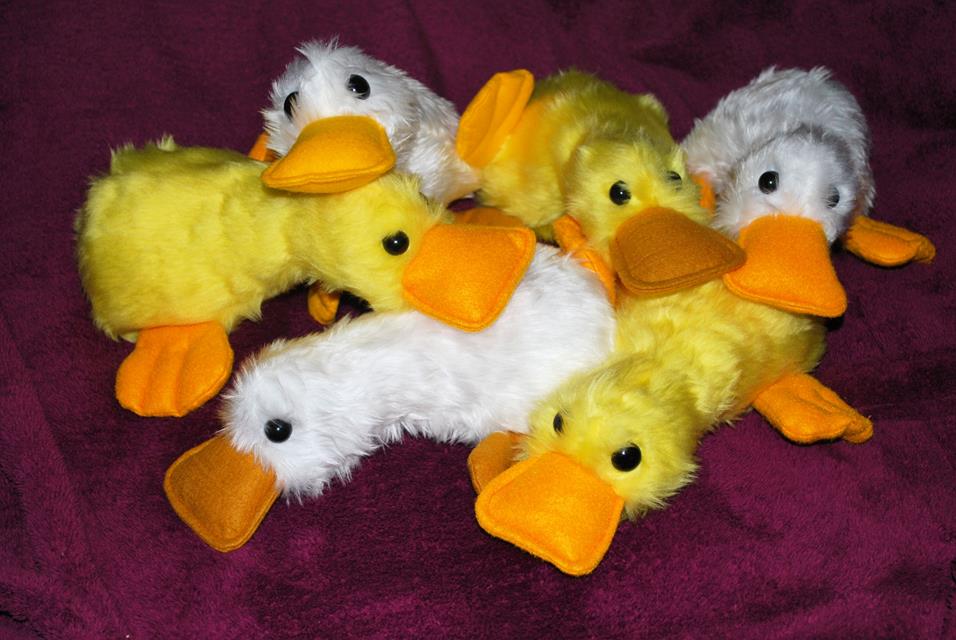

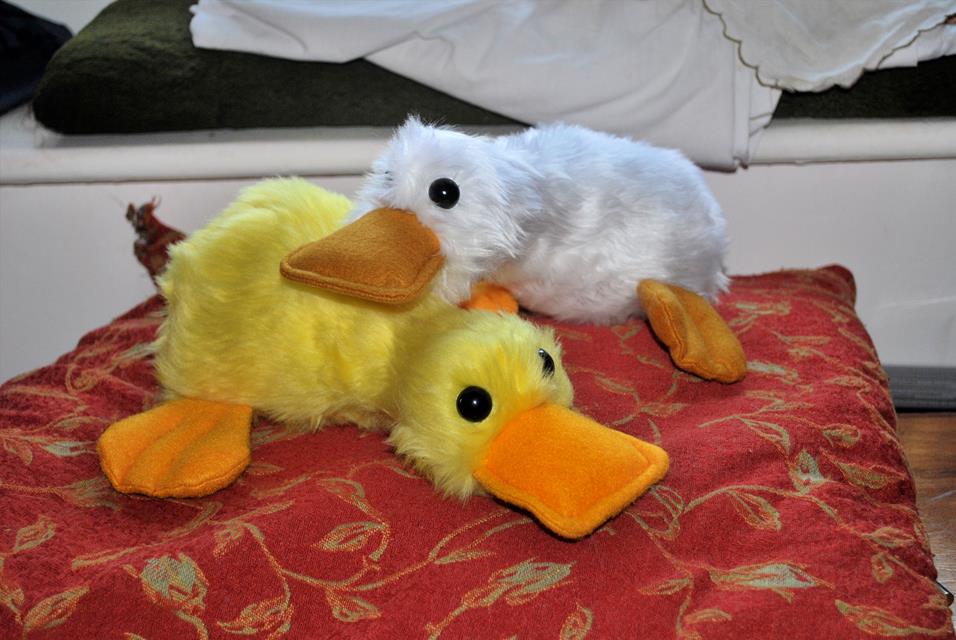

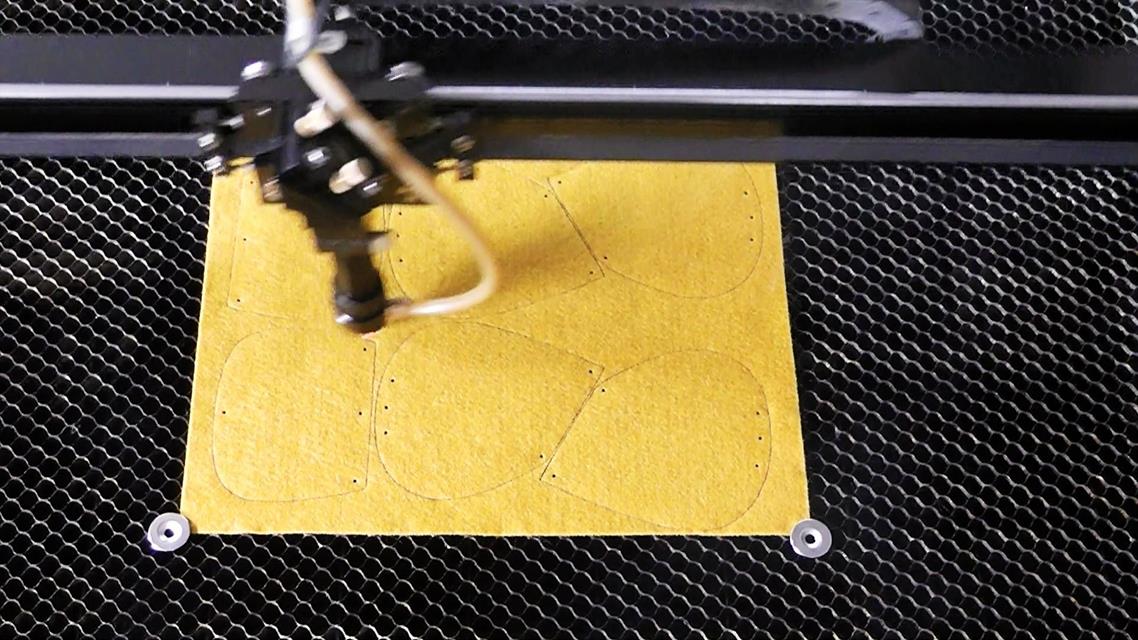

					Textile cutting using the laser to produce the parts for soft toys from faux fur fleece and felt.

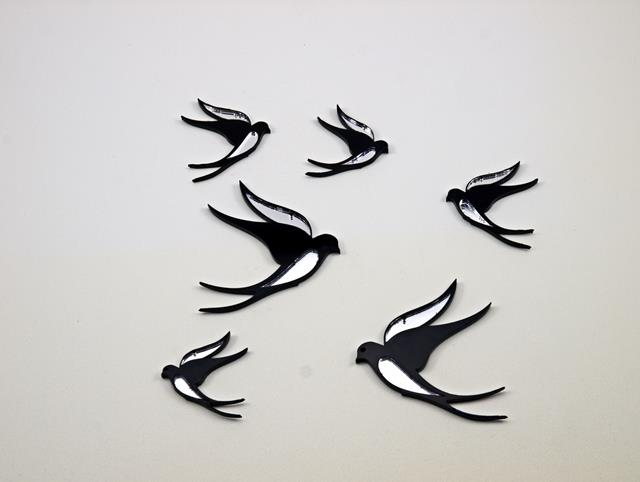

					Black acrylic swallows with inset acrylic mirror pieces for jewellery or mobile

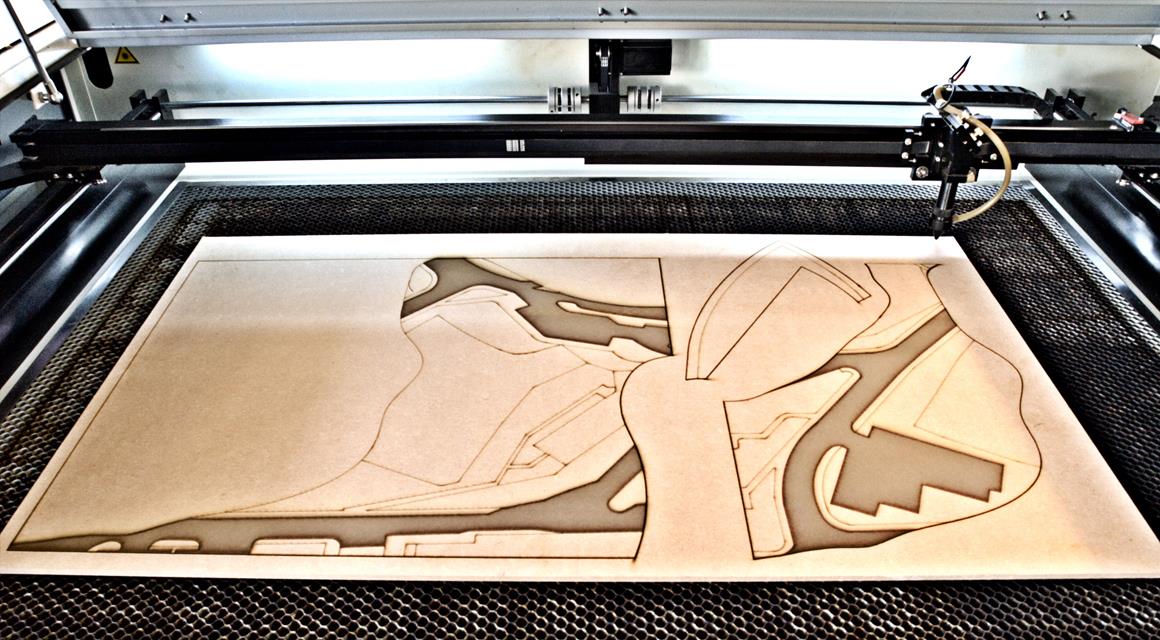

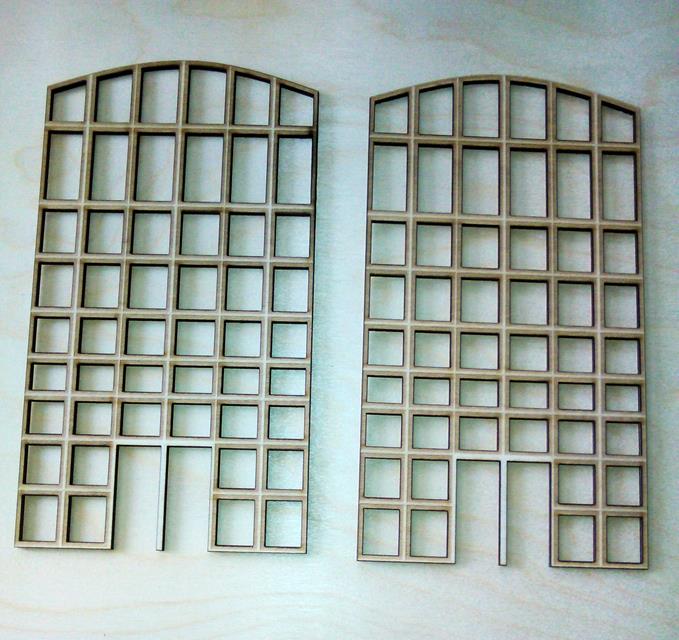

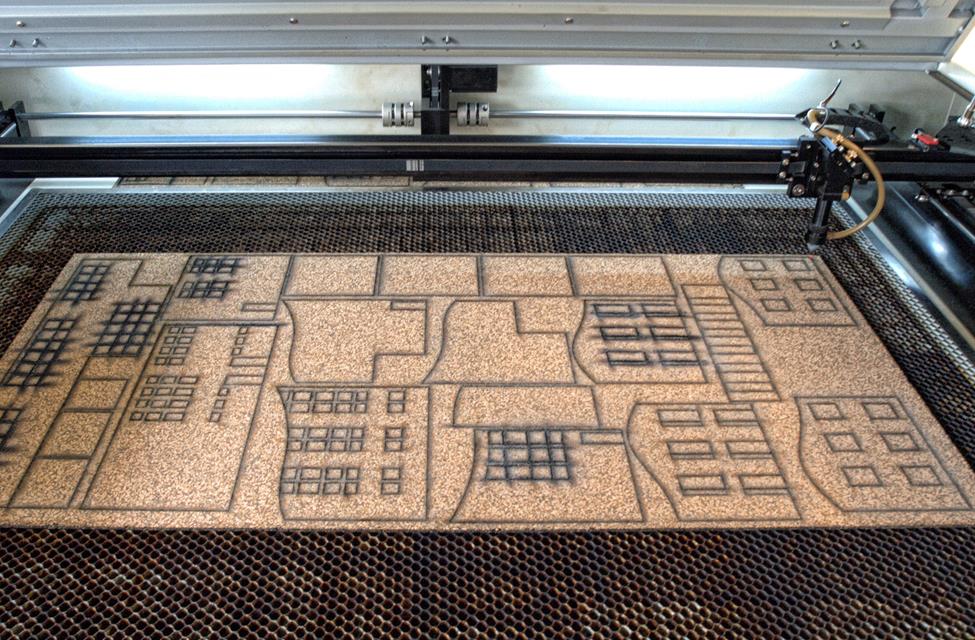

		We became the back-up for the  Plymouth University Laser Dept. We eased some of their backlog by  cutting and engraving components for models being constructed by Architectural and Interior Design  students. This included providing assistance and advice with making their cad drawings suitable for laser cutting and engraving.

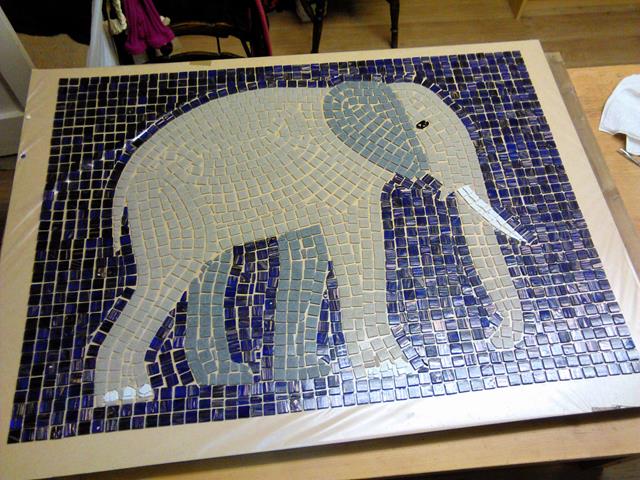

		We set up a mosaic as part of the Cornwall Girlguiding anniversary jamboree at the Port Eliot estate at St Germans, South East Cornwall. The elephant was laser sketched onto two sheets of  mdf, one of which was covered with low-tack film. The tiles were laid out ont to the film ready for 1,700 Girlguides, Brownies and Ranbows to take a tile each and glue it to the fibreglass mesh on the second board, to the song "Nelly The Elephant".

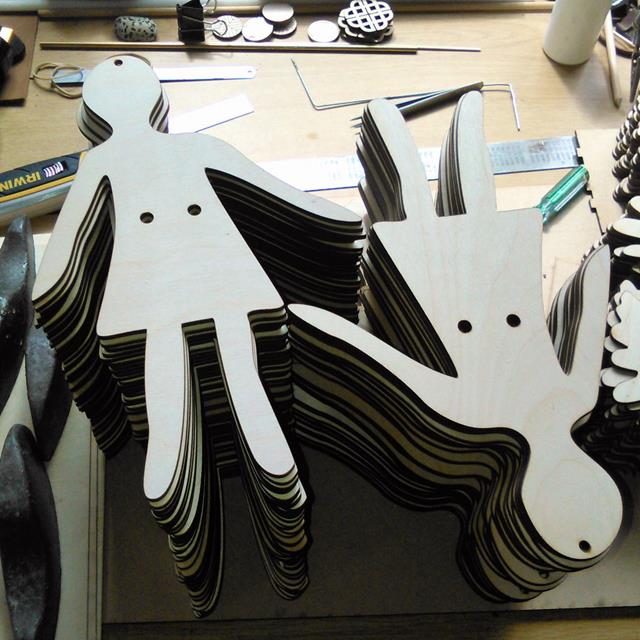

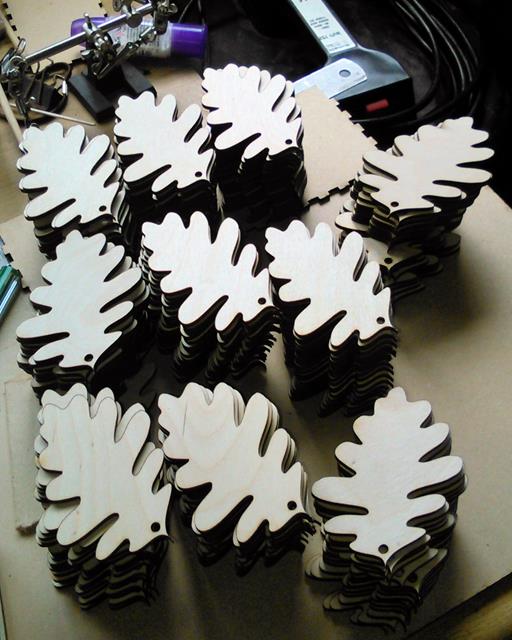

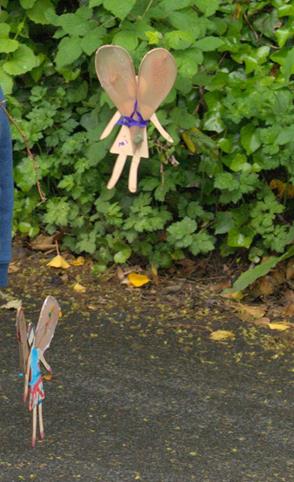

					We cut 180 plywood fairies, to be decorated by the children, and oak leaves from plywood and felt, for the St Germans Maytree Festival

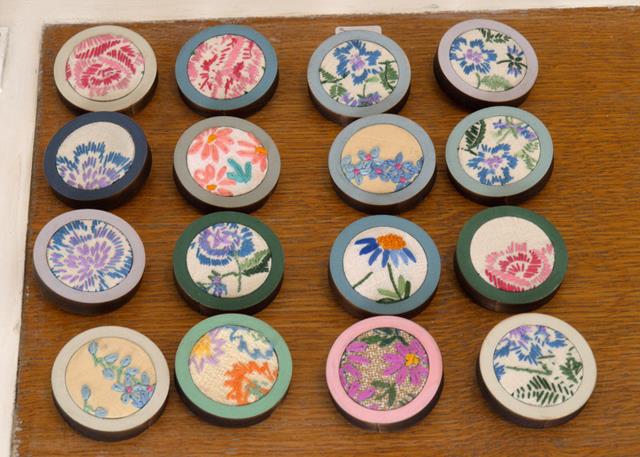

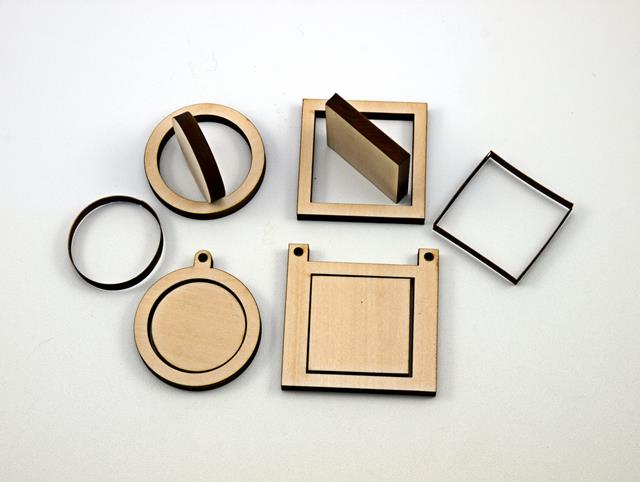

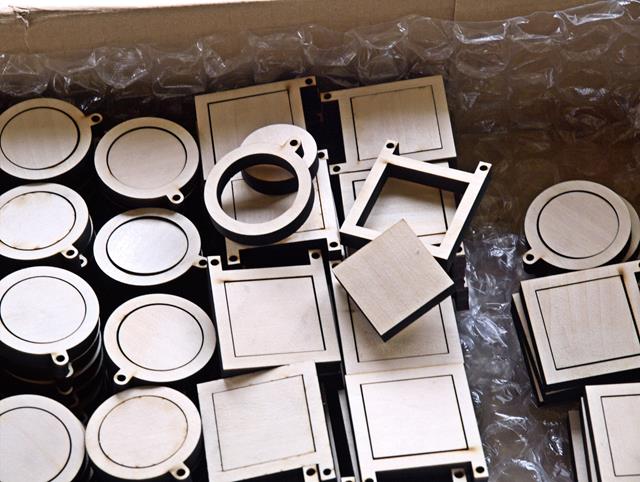

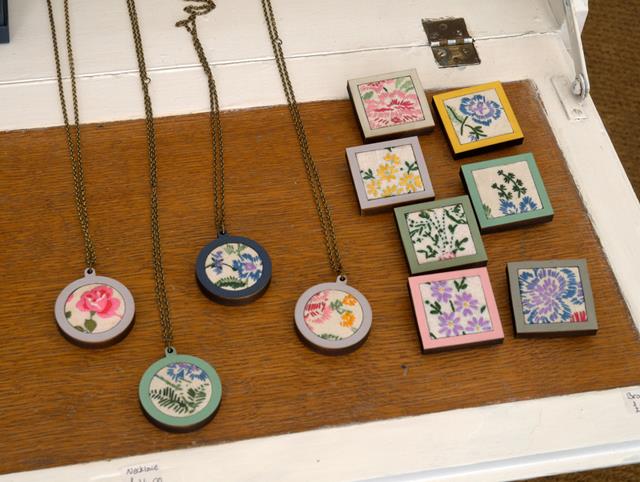

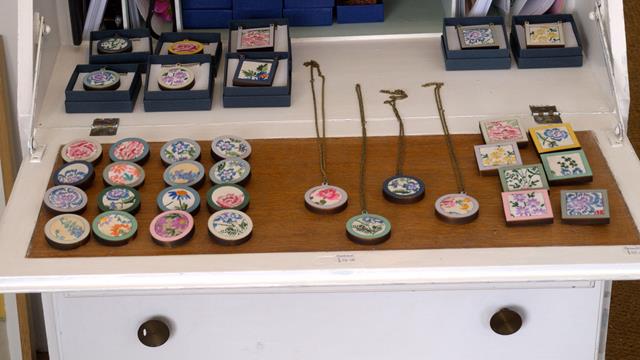

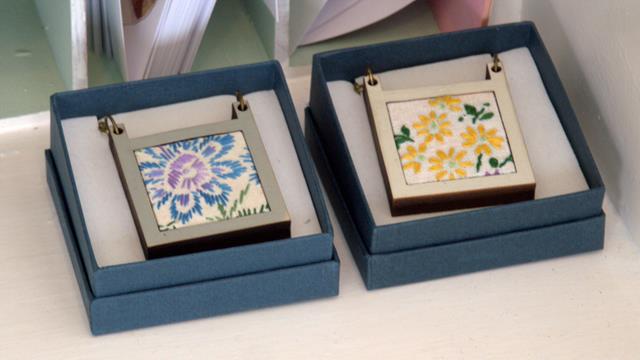

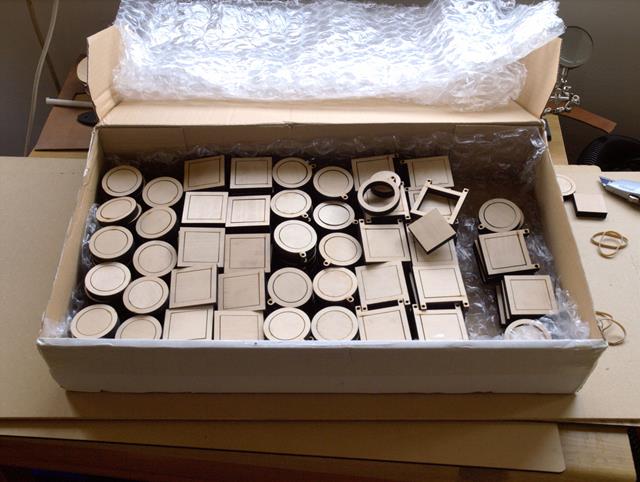

					We prepared the artwork and cut a small production run of square and circle shapes, cut from lime wood (basswood), for textile craft work by Elizabeth Loveday. The finished work was displayed at the  Contemporary Craft Festival, Bovey Tracey, Devon.

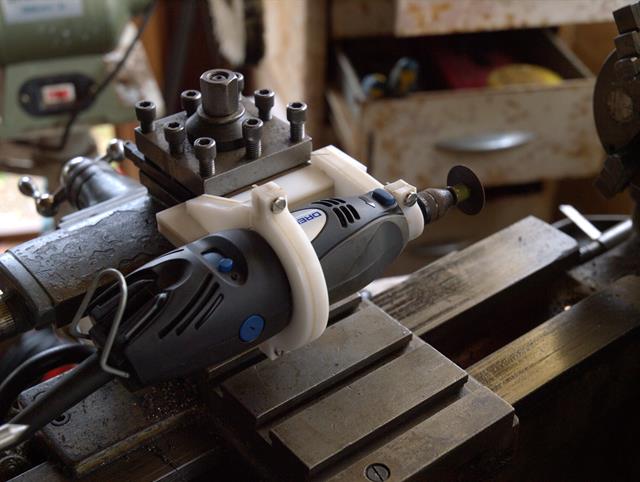

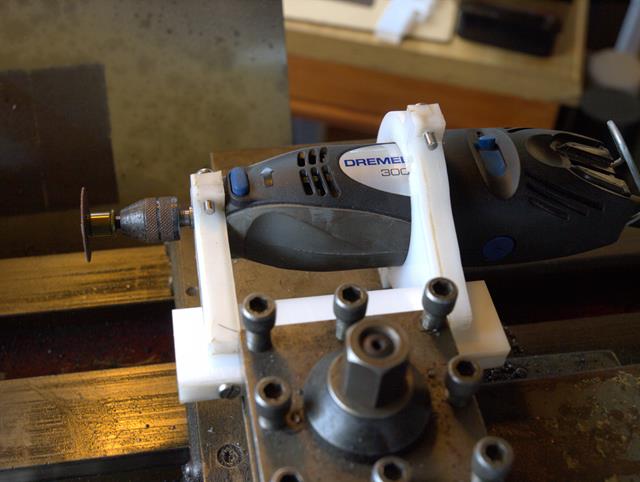

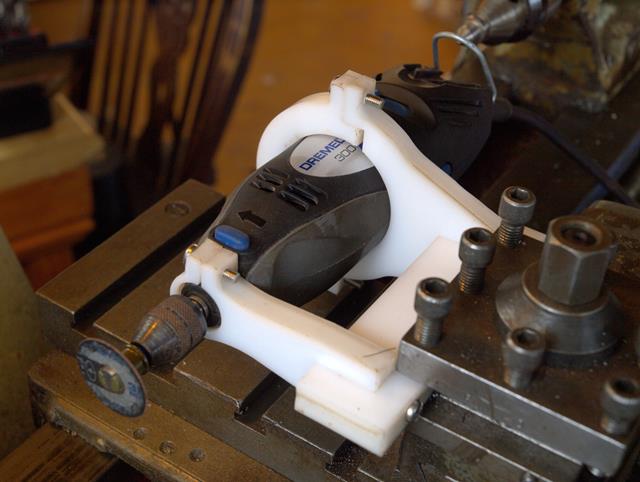

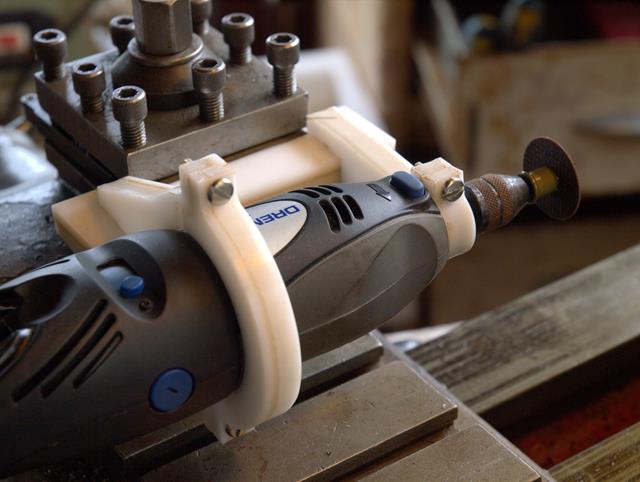

					Laser cut tooling. This time a bracket, made from 12mm acetal, for mounting a Dremel 3000 onto the tool post of a Myford ML7 lathe. To be used for parting fine brass tube and bar.
Return to Top of Page

Laser Engraving

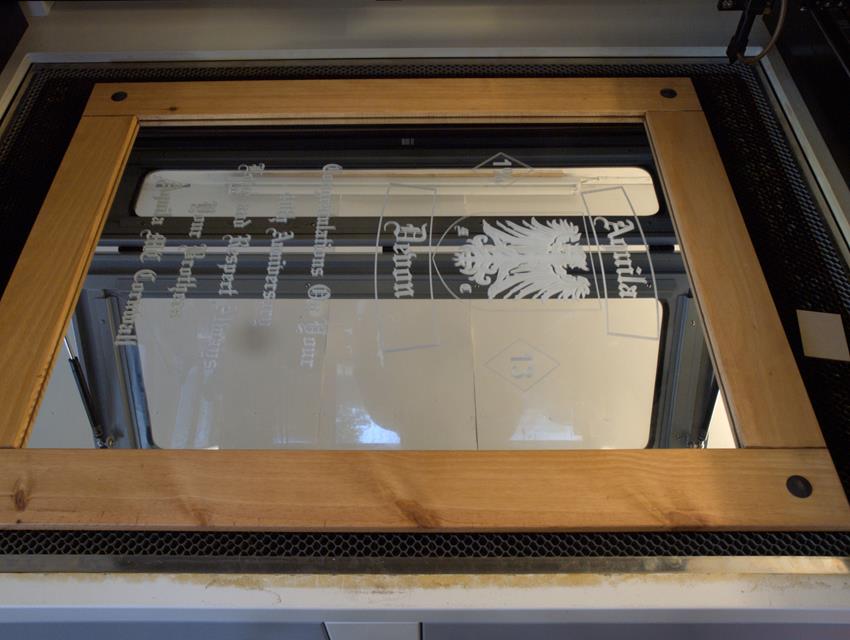

					A crest and inscription engraved onto a large mirror for Aquila Motorcycle Club Cornwall

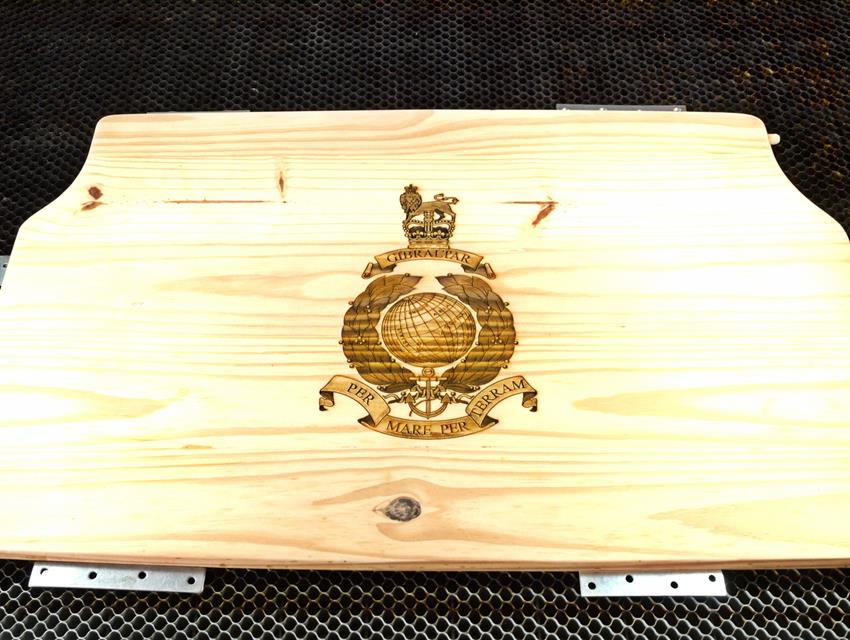

					Royal Marines Crest - engraved onto a pine table top.

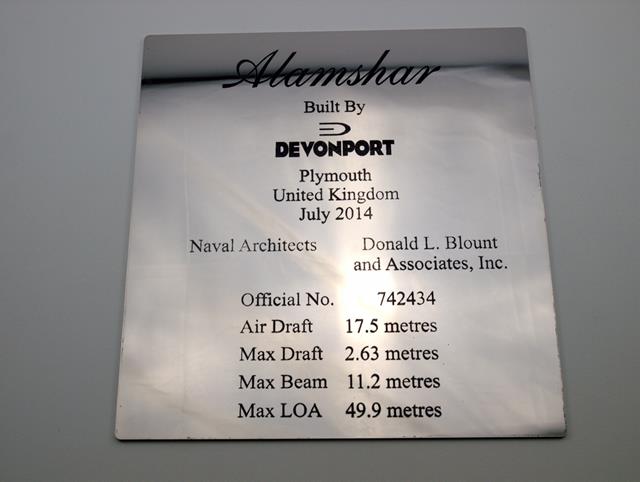

					Laser metal marked stainless steel yacht builders plate, using the Cermark process, for Babcock International.
					We engraved the "Essentially Ashgrove" Logo onto some iroko chopping boards for  Ashgrove Kitchens Ltd of Crediton in Devon, UK.

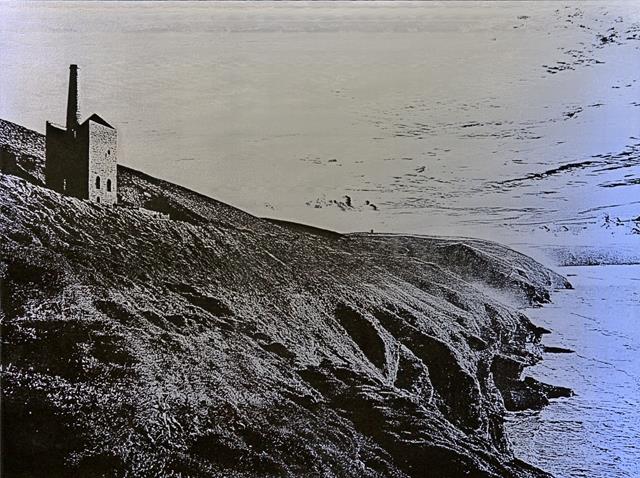

		The image on the left has been engraved onto clear cast acrylic and edge lit from LED tape mounted inside an aluminium frame. The image on the right is the original landscape photograph. So far I haven't been able to photograph the edge-lit engravings in a way that really shows how effective the results are.
					Another example of led edge illumination applied to engraved acrylic.

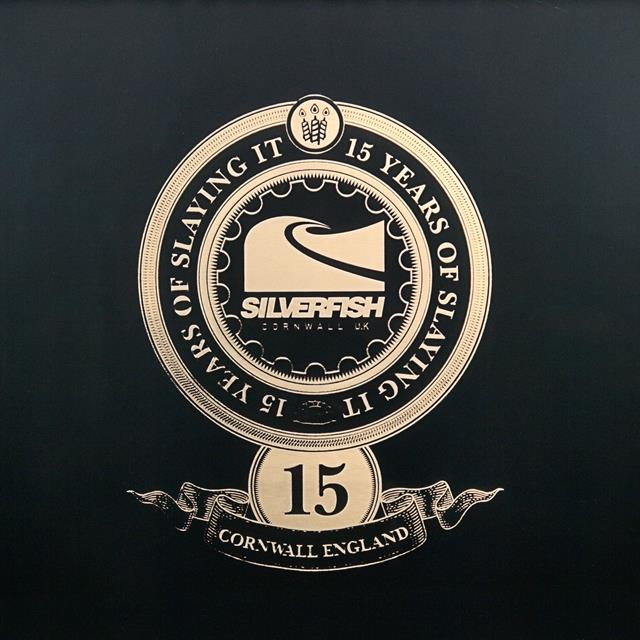

					An award Crest, produced for Silverfish UK Ltd, to celebrate 15 years of business, laser engraved onto clear cast acrylic, framed and illuminated with LED tape.

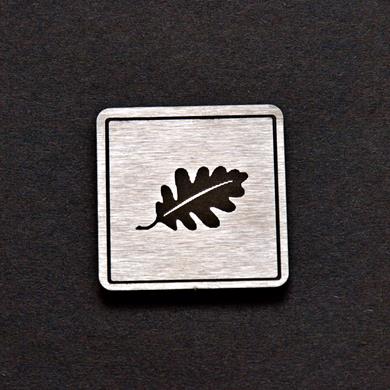

					Metal marking onto brushed finish stainless steel using Cermark heat reactive coating. See Laser Metal Marking for more details

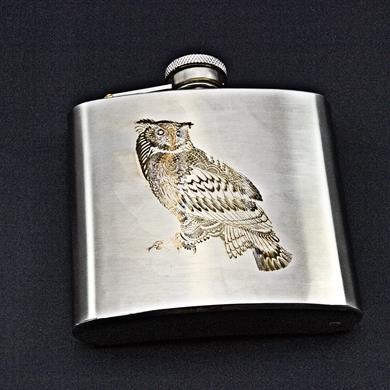

				Direct laser marking takes advantage of the properties of certain metals to change colour at different temeratures. Using a CO2 laser, this is a somewhat experimental process and while the results are impressive when they come good, they cannot always be exactly reproduced.

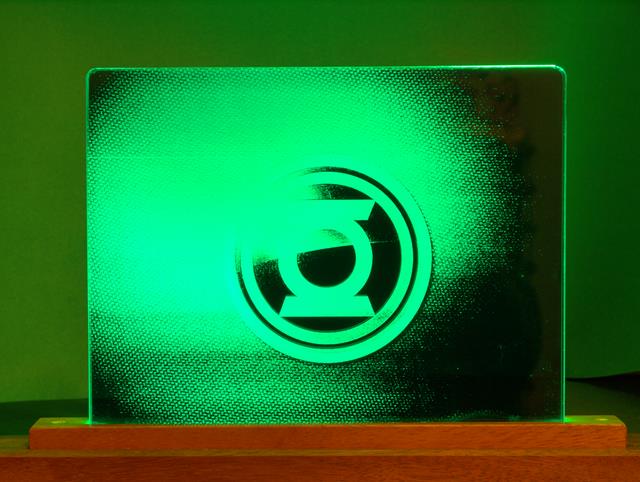

				Green Lantern image laser engraved onto clear acrylic, laminated onto a green acrylic sheet, mounted into a wooden base and lit from under the bottom edge with green led tape.
